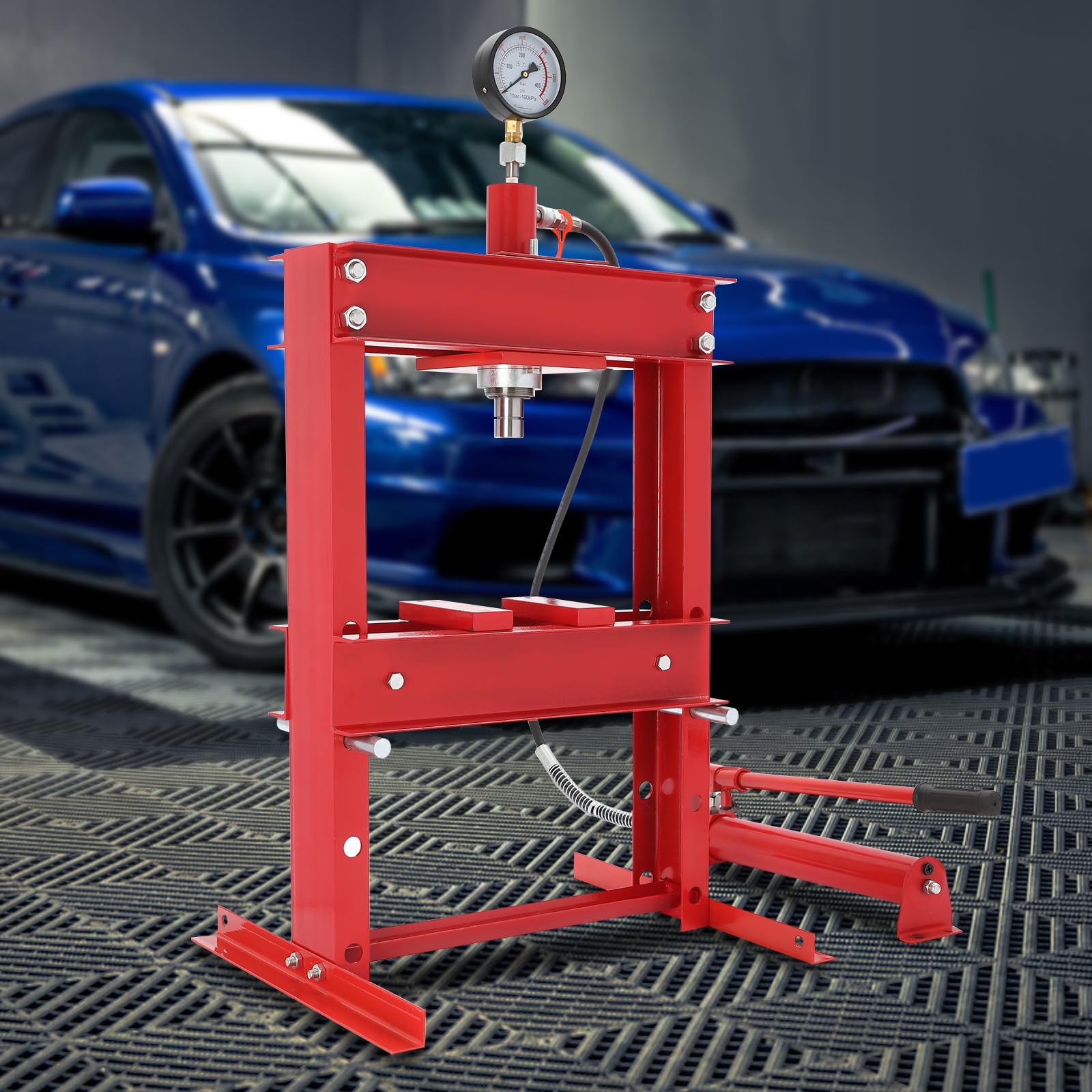

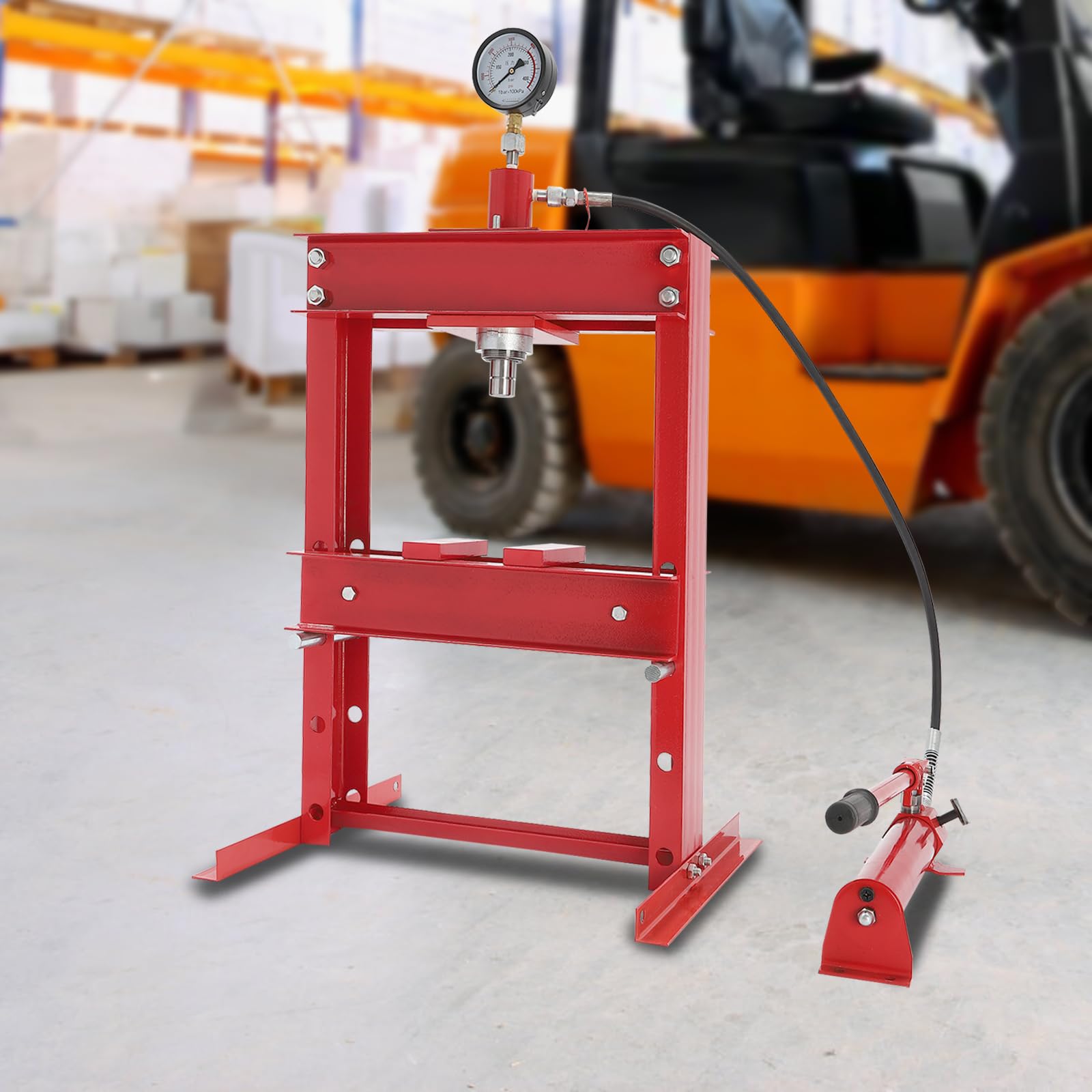

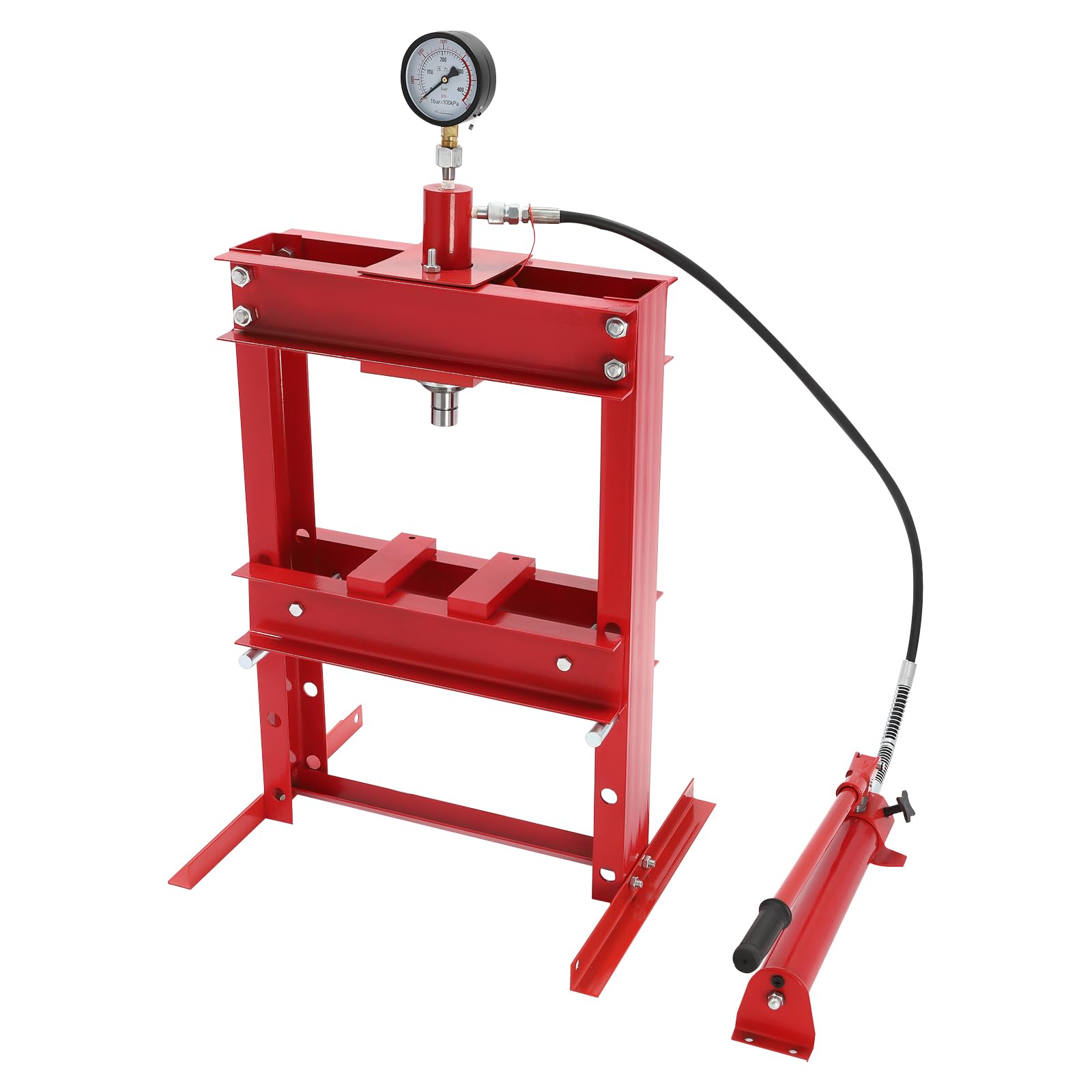

10T Hydraulic Benchtop Press, H-Frame Garage Floor Press, Hydraulic Benchtop Press with Pressure Gauge, Heavy Duty Adjustable Hydraulic Garage Press Machine for Mechanical Workshops, Garages

Brand: VelvetSlumbliery

Features:

• 【 Easy Operation 】 No manual reset is required. The hydraulic cylinder automatically retracted and the pressure can be observed on the pressure gauge, saving your time and trouble. Both the cylinder and the hydraulic pump of this product have been filled with hydraulic oil. After receiving the package and completing the installation, it can be used immediately without the need for oiling.
• 【 Solving Difficult Jobs 】 Made of carbon steel, rubber and manganese steel, it is powered by a hydraulic pump with a maximum pressure of 22,046.23 pounds (10 tons), capable of easily handling many challenging stamping tasks and is an essential tool for any workshop.
• 【 Customizable Height 】 The holes on both sides of the stand allow you to easily adjust the height of the work platform by 3 steps (each step 4.33 inches) to adapt to different working conditions. When not in use, this product can be disassembled into several parts and stored in a toolbox or cabinet to save space.
• 【 Rock-solid Stability 】 The H-shaped frame design and reinforced steel plates enable this product to withstand the pressure generated by the hydraulic pump without easily collapsing or vibrating. The hydraulic pump can automatically release pressure to prevent damage to the working platform or components, making it safer to use.
• 【 Multi-scenario Application 】 This product is suitable for general operations in auto repair shops, mechanical workshops, garages or basement workshops. Whether you are an experienced professional or a DIY enthusiast, this product is an ideal tool for metal processing tasks such as bending, straightening, pressing and stamping. Upgrade your workshop!

model number: Benchtop Press

Part Number: 06201022

Details: Specification
Material: Carbon Steel, Rubber, Manganese Steel
Process: Stamping, Cutting, Welding, Spraying
Operation Mode: Manual
Working Platform Height Adjustment Gear: 3
Pressure Gauge Accuracy: 1.6 Level
Pressure Guage Range: 0-6000psi/0-400bar
Max. Pressure: 10T/22046.23lbs
Hydraulic Hose Length: 1.2m/3.94ft
Pressure Plate Thickness: 20mm/0.79in
Max. Stroke: 13cm/5.12in
Cylinder Pressure Column Diameter: 3cm/1.18in
Height Gear: 11cm/4.33in

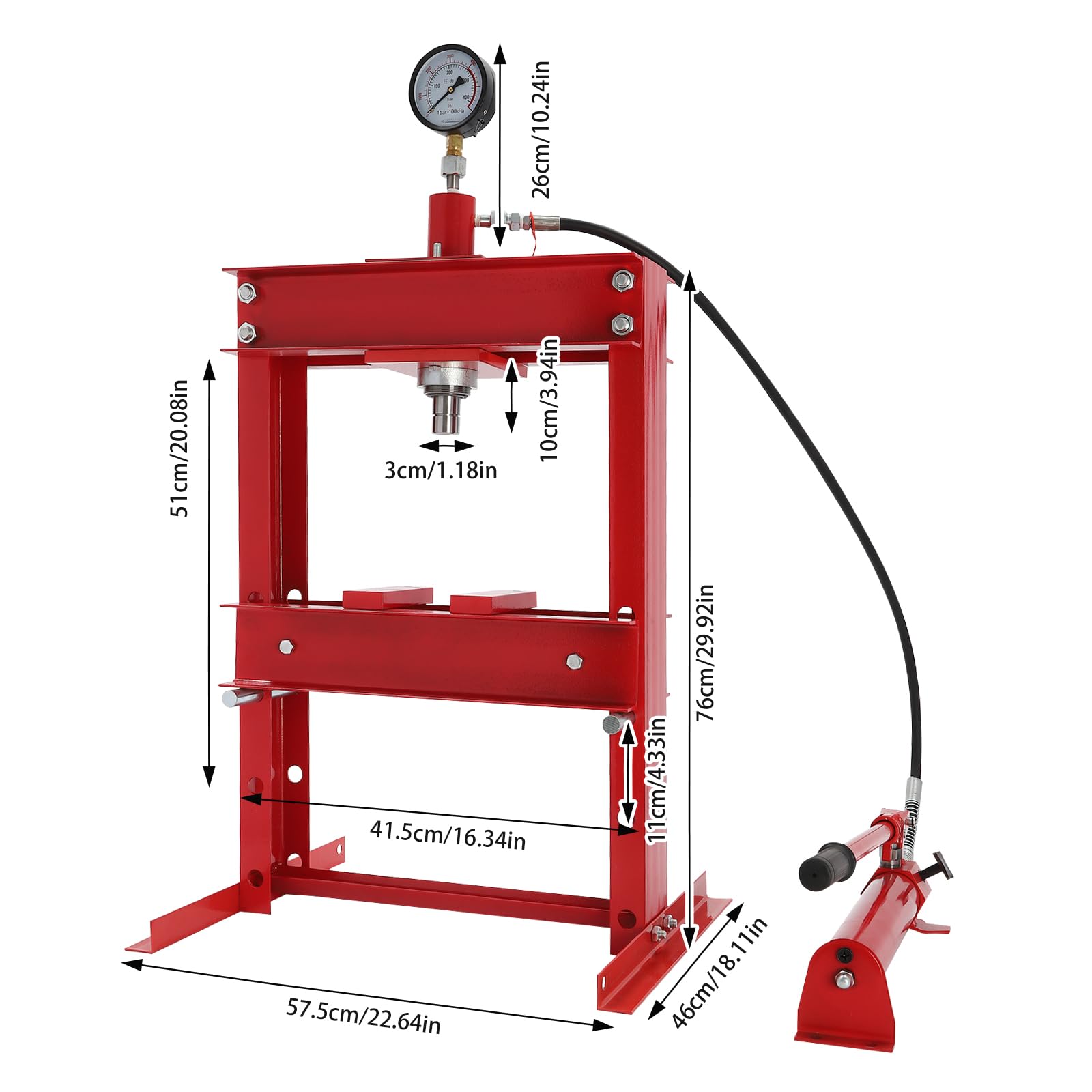

Hydraulic Press Size: 57.5*46*76cm/22.64*18.11*29.92in
Package Size: 105*23*15.5cm/41.34*9.06*6.1in
Gross Weight: 37kg/81.57lbs

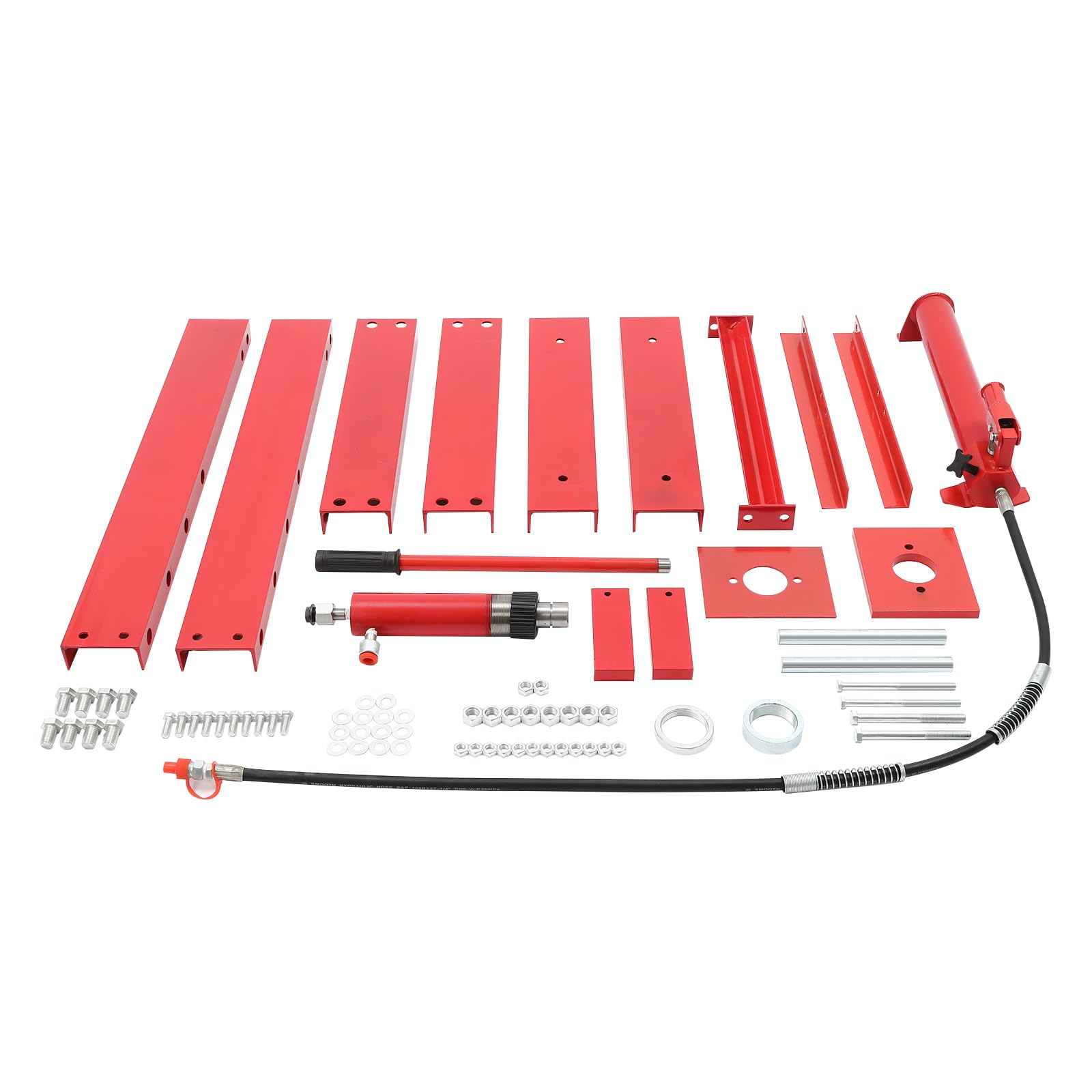

Package Included
1* Hydraulic Benchtop Press
1* Hydraulic Pump
1* Hydraulic Cylinder
Other Accessories for Assembly

Notes
1. The product should always be used on a stable, flat, dry, non-slippery, and load-bearing surface, keeping the surface flat, tidy, and free of irrelevant materials, and ensuring sufficient lighting.
2. Before each use, check this product. Please do not use it if there are any bends, fractures, cracks, leaks, abnormalities in any components, impacts, or other damages.
3. aterials such as springs that may break open. When using, please keep other people away from the front of the product and ensure that the product is in a depressurized state when it is spared.
5. Please do not use this product in a state of fatigue, drunkenness, anesthesia, or other unclear consciousness.
6. The untrained personnel are not allowed to operate this product.
7. If hydraulic oil needs to be added, please do not use brake fluid or other unsuitable liquids to avoid mixing different types of oil together. This product is only suitable for high-quality jack oil.

EAN: 0736963491783
